Product introduction

Technical accumulation of Takeishi Electric originates from the foundation of the company, which started as precise filament coil manufacturing company, mainly for lighting industry. From the very beginning, our innotive way of thinking allowed us innovative and build our original automated machine, and original method of manufacturing. Currrently, we not only supply parts for lighting industry, but also to the field of medical and analytical device market. We will introduce some areas of market that uses our products.

Medical

Due to its superb electrical and heat resistance properties, tungsten filament coils are widely used for X-Ray devices such as CT Scanner and PET. Takeishi also manufactures Pt. coated tungsten filament coils.

医療

Catherter for inspeciton and treatment

In order to control torque and hardness, many different methods are applied to SUS coil inside of catherter. High density materials such as tantarum and tungsten are used as a marker when radiation imaging device is used for inspection and treatment.

医療

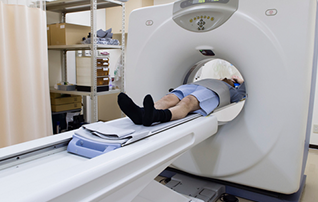

X-Ray CT PET

Controlling or shutting down radiation level, collimator made of heavy alloy, and resin tungsten sheets or parts are widely used. As X-Ray source, EB Gun using tungsten filament is very popular.

Takeishi products in this area

医療

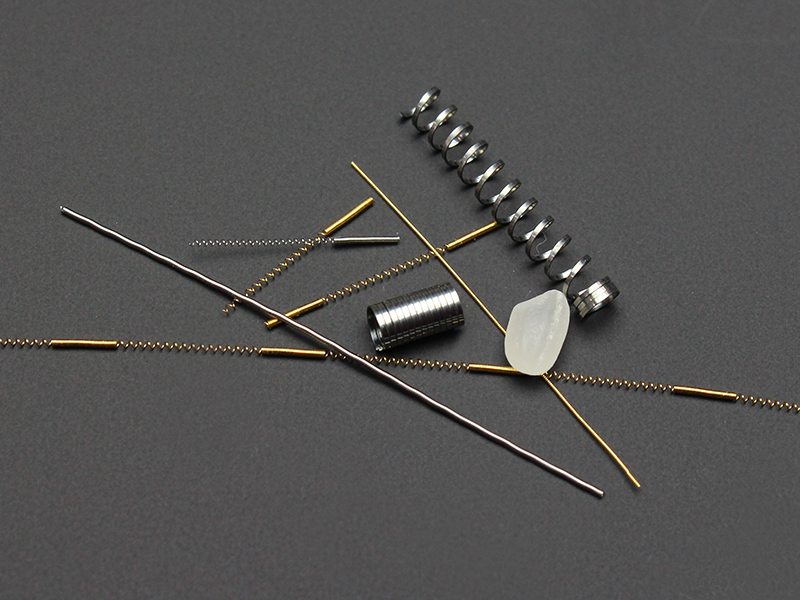

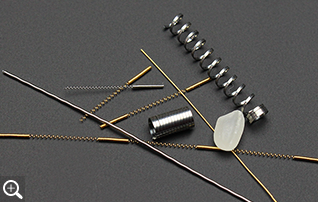

Samples of precisely coiled filaments, and mesh wire.

Using wire or flat wire (ribbon wire),we form coils made of tungsten, platinum, Pt. coated tungsten, SUS and other materials. Wire diameter could be as small as several microns.

医療

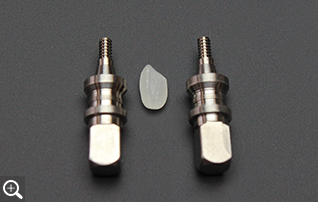

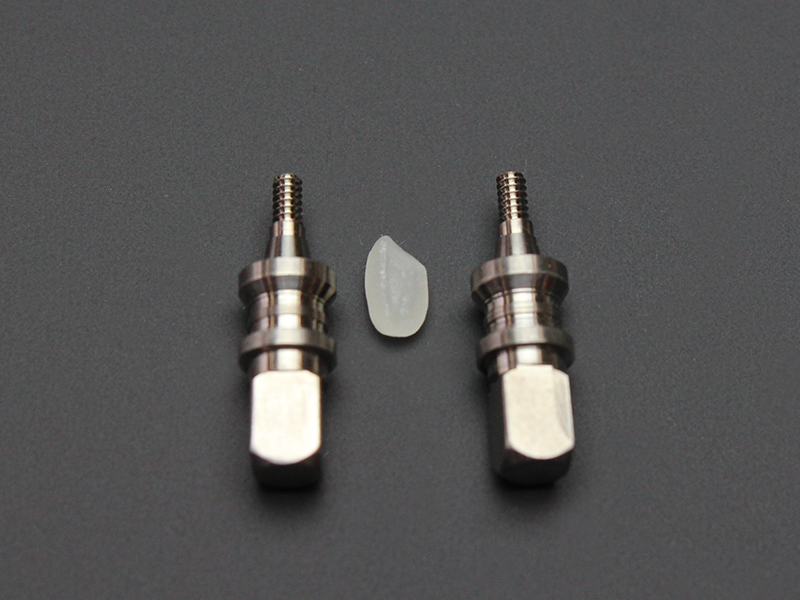

Titanium threaded Bolt (Inplant)

Machined parts made out of tungsten and heavy alloy for X-Ray related medical devices, material like platinum and titanium are used as parts inserted into human body.

More information are found on folloing

Sensor・Analytical Device

Analyzing composition, structure, characteristics of substance is essential, when manufacturing safe products, as well as monitoring environment surrounding us. Wide variety of analytical devices are available for these purposes. As a means to analyze substance, ultraviolet, visible rays, infrared, as well as electromagnetic wave including X-Ray are used. Our products are used in this area, especially for spectroscopic analysis, electromagnetic analysis (X-Ray analysis), and gaschromatographic analysis.

センサ・分析機器

Spectrographic analysis, Infrared analysis

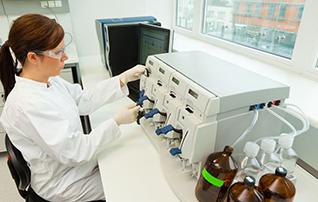

Analysis by radiation often uses lamps like Xenon lamp and Halogen lamp. We supply lamp electrodes and filaments to lamp manufacturers. Blood analyzer and Hematological testing device are some of most important devices for human life.

センサ・分析機器

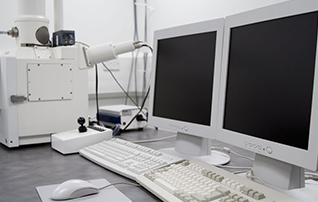

Electromagnetic analysis(such as X-ray analysis)

X-Ray analytical devices like EDM and EDS are widely used for analyzing composition, chrystalization, stucture and mass.

Takeishi products in this area

センサ・分析機器

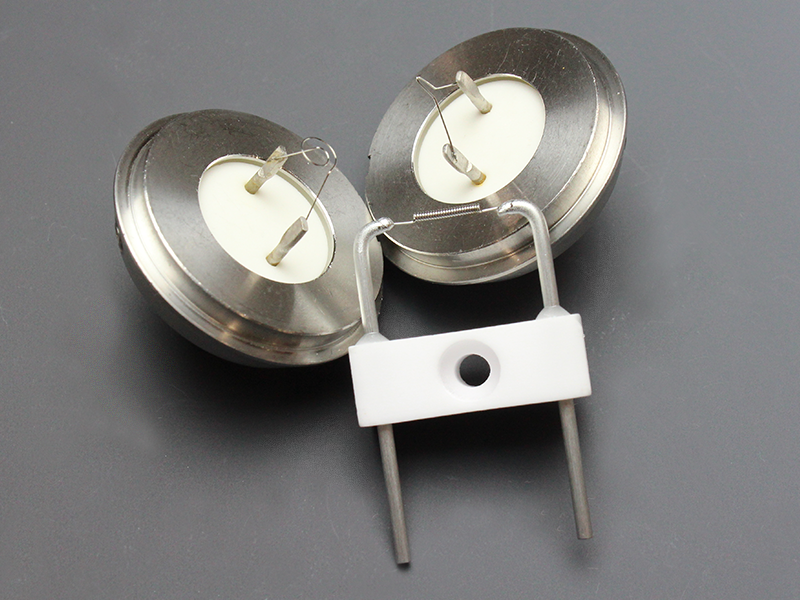

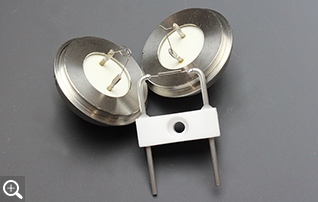

EB Gun assembled

Other than supplying X-Ray radiating filament, Takeishi supplies assembled EB Guns as we have long experience in assembling and welding various kinds of materials. We can weld filament to stem, assemble with ceramic base.

センサ・分析機器

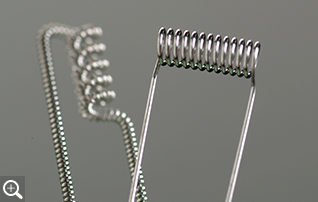

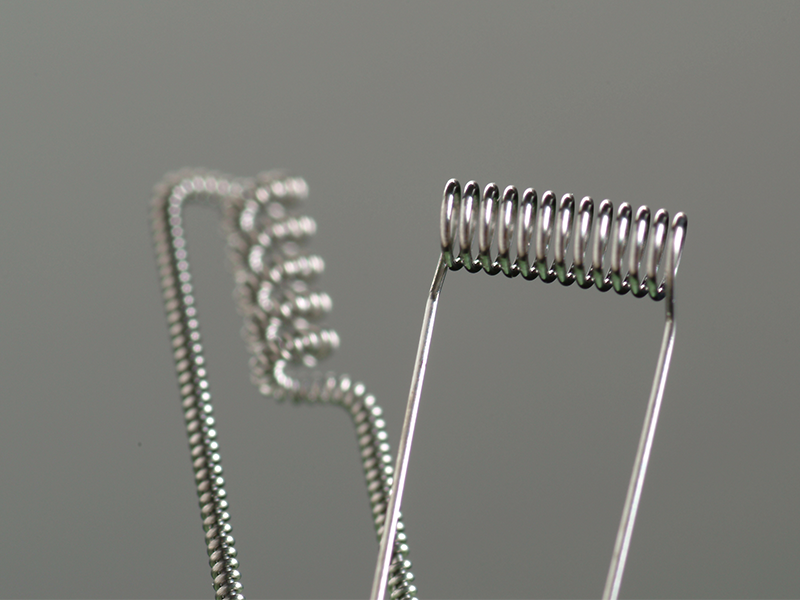

Filament Coil

With vast experience and knowlege of lamp filament, Takeishi is one of leading companies in the world, supplying lamp filaments for lamp manufacturers all over the world. We manufacture filaments in countless kinds of shape, and add special treatment according to customers needs.

More information are found on folloing

Nuclear power Radiation

Nothing is more important than controlling radiation in the field of Nuclear Power. High density metals such as tungsten and molybdenum are ideal material for shielding radiation intensity. Copper is widely used as radiation shielding material, however it is highly hazadous material. tungsten is known to have very limited negative impact on environment.

原子力・放射線

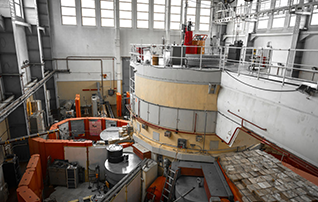

Nuclear power plant・Reserch institute using radiation

In order to shield radiation, and to protect environment, many people started paying attention to tungsten parts are also used for nuclear accelerator for research of better and safer use of nuclear energy

原子力・放射線

Radiation sheilding clothes and epron

tungsten is one of the densest metals, and it is heavy. When used as radiation sheilding materials , clothes and epron for example, resin mixed tungsten is used.

Takeishi products in this area

原子力・放射線

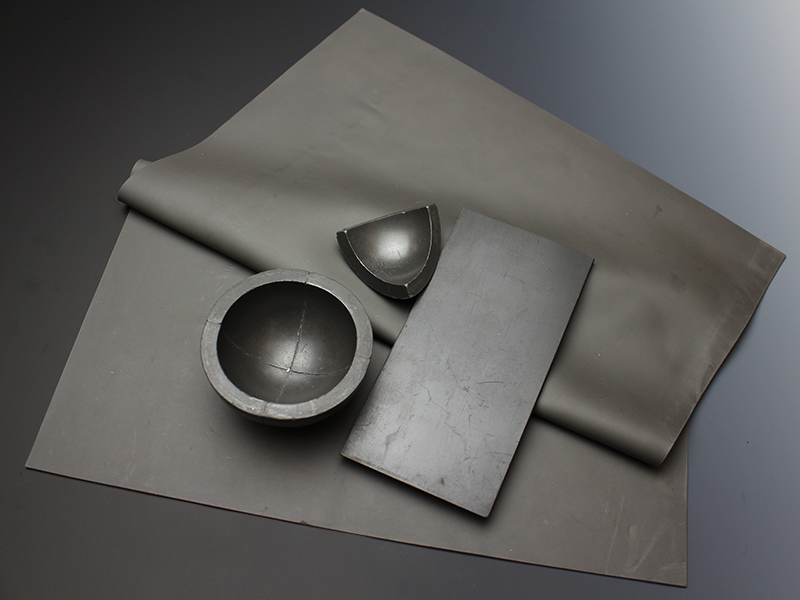

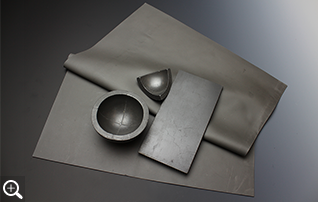

Resin mixed tungsten

tungsten is very high in cost and lacks flexibility. In case of this, resin mixed tungsten may be a better choice in terms of cost and flexibility to shield radiation.

原子力・放射線

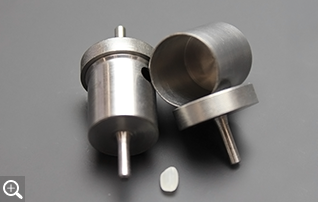

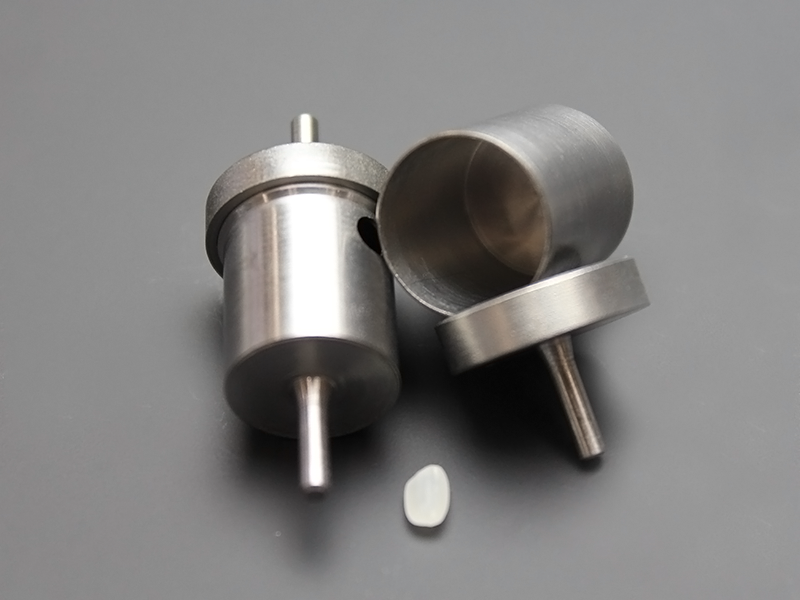

Pure tungsten crucible

One of Nuclear resarch laboratories was in need of crucible made out of pure tungsten. We grinded roughly 10mm diameter pure tungsten rod. It has wall thickness of 0.2mm.

More information are found on folloing

Sterilization・Heat treatment

Germicidal device equipped with UV lamps are widely used in variety of areas of business incluing food industry, semiconductor industry, printing industry. In Japan, it is quite popular to use germicidal device at hot spring facilities to purify hot water in the bath.

殺菌・熱処理

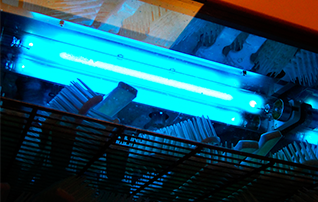

UV lamp, UV epuipment

Germicidal equipment using UV ray generally uses UV lamp. tungsten electrode and filament are widely used for these lamps.

殺菌・熱処理

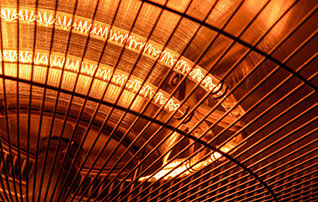

Halogen heater・High temperature furnace

Halogen heater lamps are equipped with coating drying line in many factories. Such heater lamps are designed to enhance efficiency using infrared areas of light wave. Tungsten has highest melting point of all metals. It also has property of low vapor pressure, low thermal expansion, and good thermal conductivity. It is an ideal material for high temperature vacuum furancace.

Takeishi products in this area

殺菌・熱処理

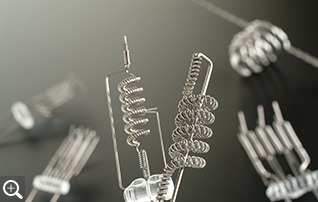

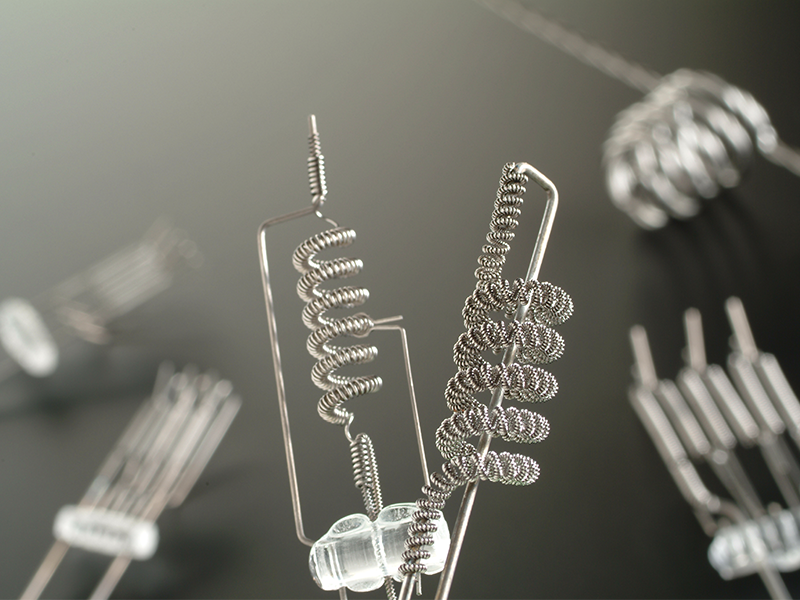

filament coils and electrodes for UV

Light source for UV lamps, filament and electrode, is one of our main products. In order to increase life span of lamps, we add special heat treatment here at Takeishi Electric. To have a better discharge property, we mix emitter into electrode material, or we can coat emmiter material to the electrode.

殺菌・熱処理

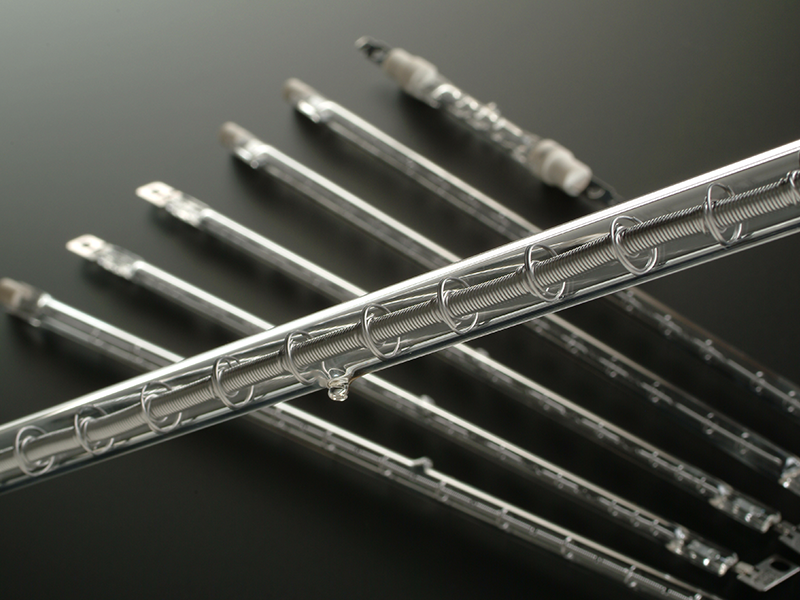

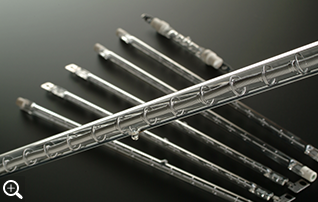

Halogen heater coil

When heater lamp is operated, filament coil reached to extremely high temperature. In order to prevent filament deformation at high temperature, we use doped tungsten such as potassium tungsten. Non-sag and longer life halogen heater filament coils are rechrystalization treated filament aimed at not deforming when operated under high temperture.

More information are found on folloing

General lighting

World is still lit with conventional lamps. Incadescent lamps, halogen lamps and Kripton lamps that have filament coils, and high pressure mercury lamps, sodium lamps, metal halide lamps are still used in many applications.

一般照明

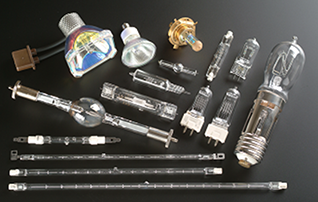

Halogen lamps・Metal Halide lamps.

When color rendering, atmospher and other needs are there, there are still people prefer conventional lamps.

一般照明

Stage and Studio lamps・Sports lighting

For FIFA official football stadiums, MLB Major league ballparks, concert halls, movie shootings, high wattage discharge lamps are still the main stream.

Takeishi products in this area

一般照明

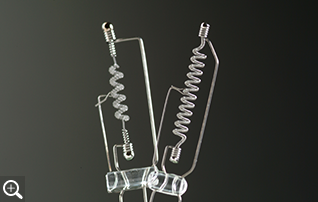

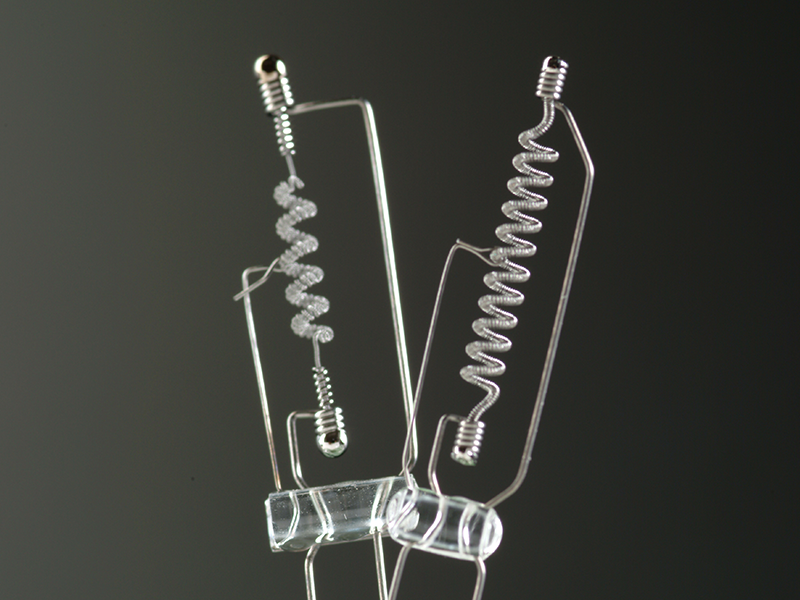

Tungsten filament coil

Almost any kind of shape and characteristics, we manufacture various types of filament coils designed for each customer by using our own originally designed and built machine

一般照明

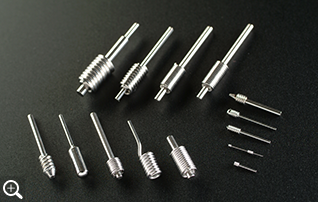

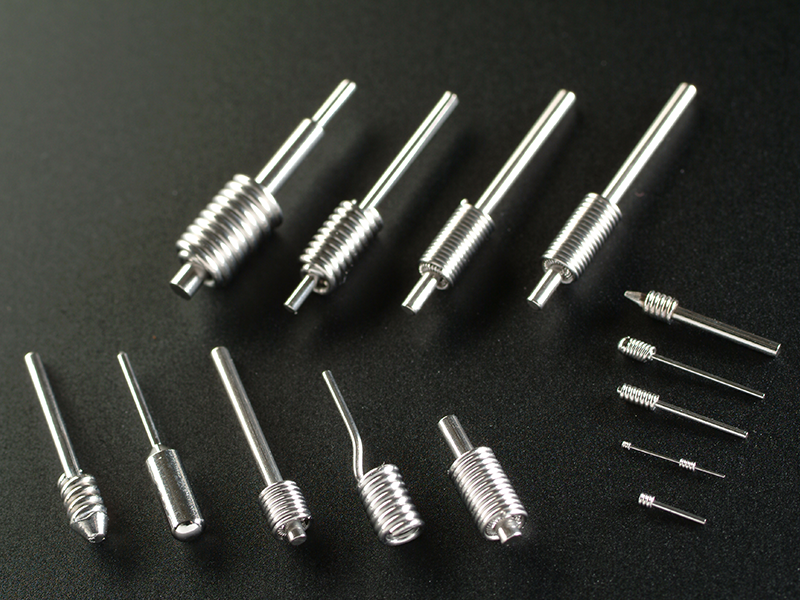

Electrode for discharge lamp

From 3N to high purity 5N tungsten materials, we choose the best materials that best fit to various types of HID lamps for Street lighting, Sports lighting, Car crash test lighting, Cinema Lighting and many others.

More information are found on folloing

Special Industrial lighting

Lamps are not just for lighting streets and facilities, but are used in special industries with unique purposes. "Curing painting". "Attract fish", "Prevent disiease", "Project images", "Create color reference" to name a few.

産業用特殊照明

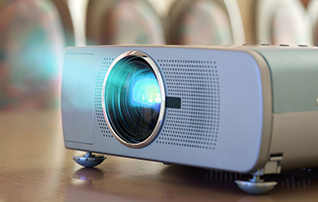

Projector light source・UHP

Ultra High Pressure mercury lamp is the mainstream for Data Projector, Projection Mapping, Cinema to create natural and beautiful image while having enough power.

産業用特殊照明

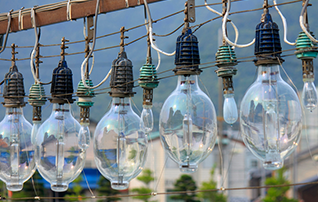

Fishing lamp

Starded in Japan, spread in Asian countries and further, fishing saury, squid, yellowtail are very popular way for catching fish.

Takeishi products in this area

産業用特殊照明

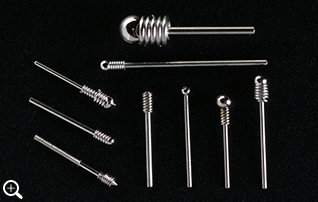

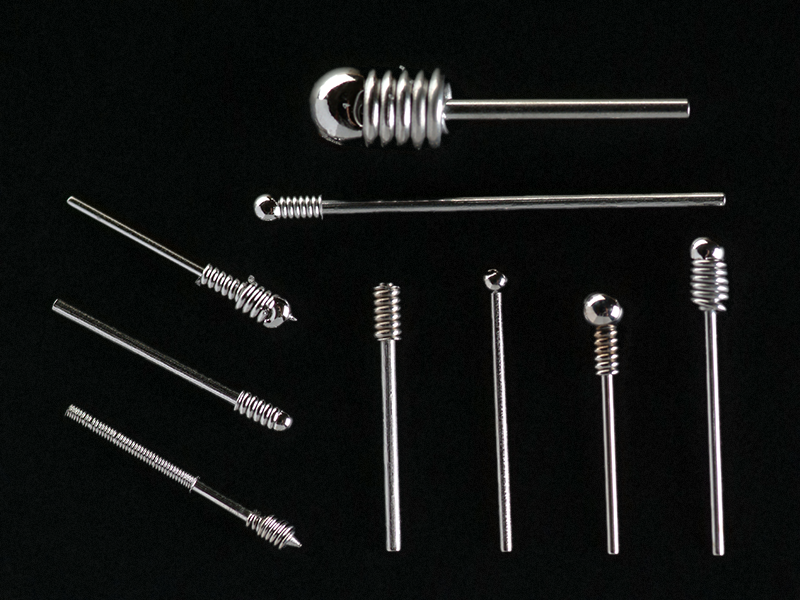

Electrode made of high purity 5N material.

When operated, inner pressure of arctube for UHP lamp exceeds 200. Tiny impurity human eyes can not catch may lead to lamp to blacken, or exprlode in the worst case. With one of Japanese tungsten material suppliers, we have co-developed super high purity 5N tungsten material which best suit to UHP lamps.

産業用特殊照明

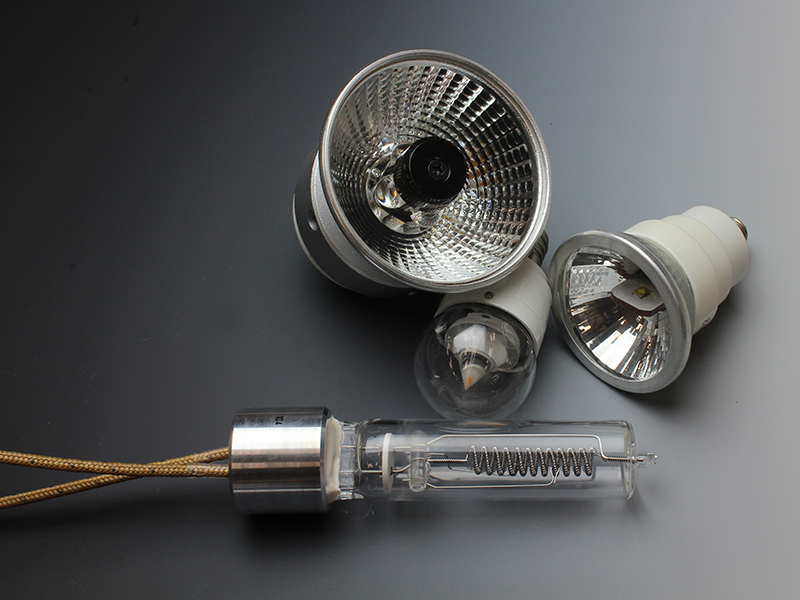

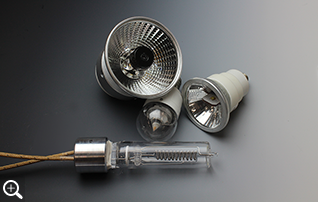

Halogen lamp for special purpose・LED

Our filaments are not always for massproduction. We respond to needs of customer who would like to develop lamps for special needs and purposes. We can also help develop original LED.

More information are found on folloing

Amusement

People usually think tungsten and rare metals are industrial use, but these materials are widely used among us. Especiall for hobby, you find these materials very near to you.

アミューズメント

Fishing lure and weight

Almost all states in U.S.A, lead materials are banned to use for the fishing weight. Tungsten weight is slowly but steadily drawing attention of anglers.

アミューズメント

Darts Barrels

tungsten heavy alloy are used for darts barrels. Specific gravity of tungsten heavy alloy may be adjusted according to players touch, barrel forum, or total weight.

Takeishi products in this area

アミューズメント

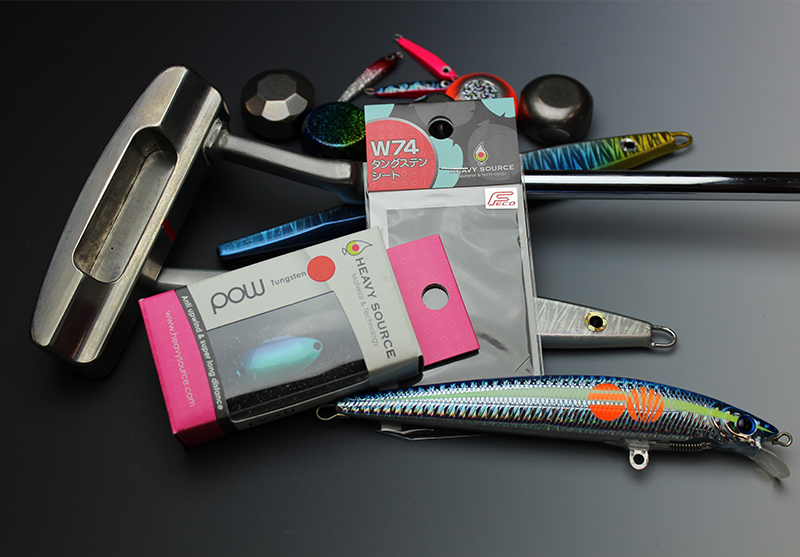

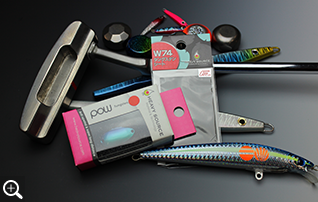

Heavy Source fishing lure and others.

We have our original brand "Heavy Source" for fishing. Tungsten heavy alloy lure, center gravity shifting device for lure, weight are some of lineups we offer.

アミューズメント

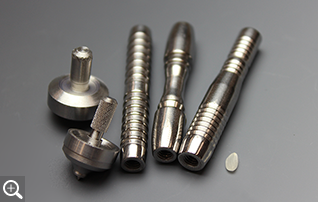

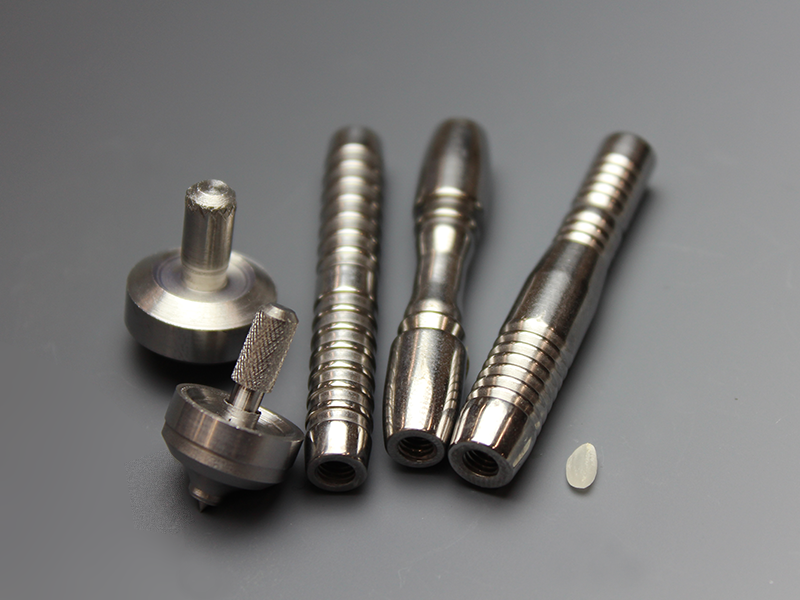

Machined Tungten heavy alloy parts.

Other than machining tungsten heavy alloy, we can make parts from tungten powder. By mixing, pressing, degreasing and shintering we can create parts or finished goods in not a large scale quantities. If needed we can add finishing touch, including plating and painting.

More information are found on folloing

Research institutes and others

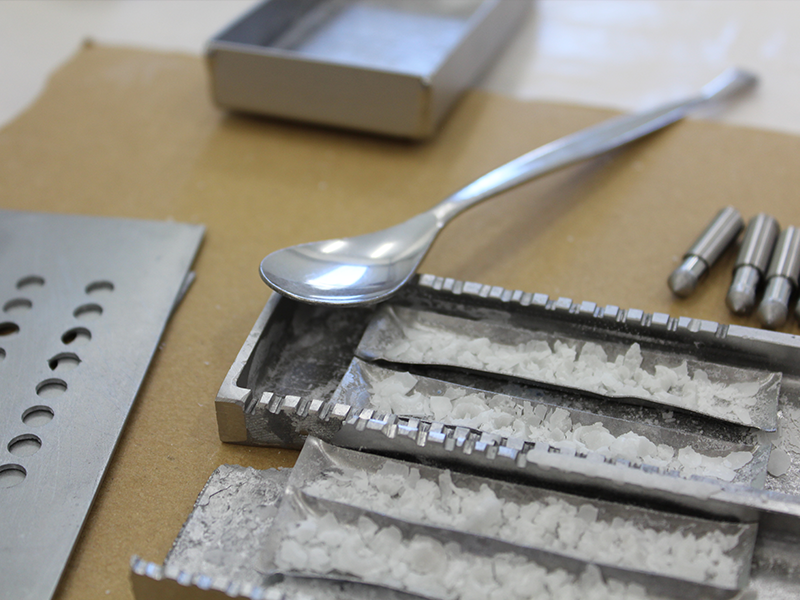

At school, we never liked homeworks or assignments. But heare at Takeishi Electric, our R&D group always search for opportunity to receive homeworks. Not only from industrial field, we welcome homework or joint development offered from schools and institutes. Our knowledge is not limited to machining, we seek our opportunity in "Porus tungsten", "Shintering material", "Reisn + metal material", "Ceramic coating", "Low function material (developing materials, coating materials, impregnating materials)

研究機関・その他

Low work function material to enhance discharge property.

We are seeking the opportunity to develop or joint develop low function materials, such as barium oxide (and other oxide) impregnated or coated materials.

研究機関・その他

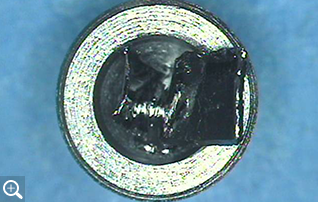

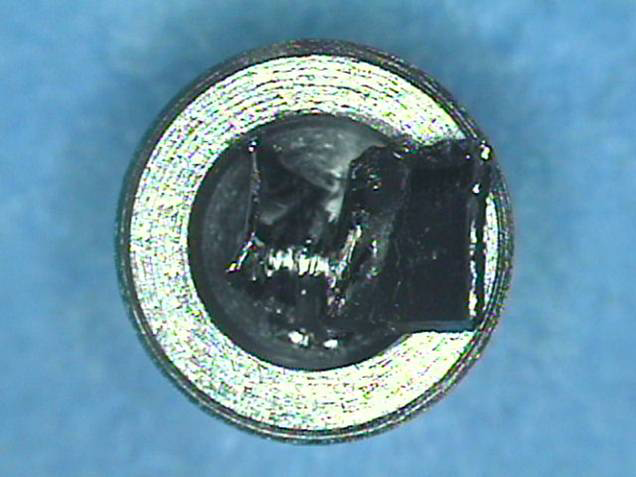

Proof to reach 2800 degree C

Our own ultra high temperature vacuum furnace reaches up to 2800 degree C. Above picture of melted tantalium is here to prove it.

More information are found on folloing
